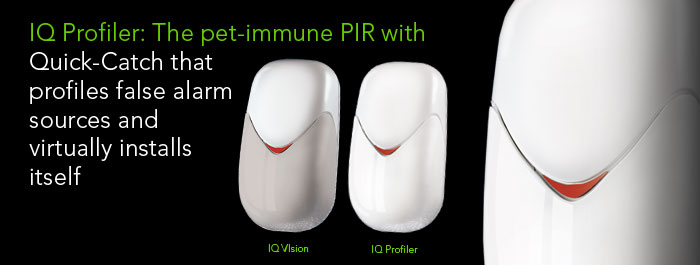

IQ Profiler
IQ Profiler
  • 50 lb. pet immunity (22.7kg) & superior false alarm discrimination with unique dual focal lenses.
  • Installation in a snap with patented Quick-Mount and Quick-Wire terminals
  • Maximum range: 50 x 50 feet
  • New & improved Quick-Catch mode
  • Advanced microprocessor-based circuitry with proprietary NAPCO detection algorithms for optimal protection from false alarms without compromising catch
  • Bi-optic contour case and dual focal lenses provide exceptional distance profiling:
  • Far field lens allows for detection of large objects and ignores small targets nearby
  • Near field lens allows for discrimination of small targets nearby pet and rodent immunity
  • Shielded high-performance aspheric lenses
  • Look down/creep zones provide coverage beneath sensor
  • Sensor chamber prevents insect, draft, and dust interference.
  • Utilizes analog to digital signal conversion
  • Vertical aiming capabilities
  • Flat or corner mountable to 8.5’ (2.6m)
  • Wall mount and corner mount
  • Swivel aiming with optional SVL2 swivel bracket
  • Advanced microprocessor-based circuitry with built-in profiles of common false alarm sources:
  • 20v/m RF-shielded circuitry
  • Operating Temperature: 14°F to 122°F (-10° to +50°C)
  • Mounting: Wall or corner, 6.5’ to 8.5’ max. (2 x 2.6m, max.)
  • Alarm Output: Normally-Closed Form-A Relay (Form C Option)
  • Contact Ratings: 100mA, 24VDC with internal 10 Ohm current-limiting resistor
  • Power-Supply Requirements: Intended for operation from a power source that provides a 4-hour battery backup in event of power failure
  • Filtered DC: 10.6 to 16VDC nominal with battery backup from control panel
  • Current Drain: 28mA (idle or alarm) at 12VDC (nominal); 33mA (idle or alarm) at 16VDC (nominal)
  • Dimensions: 4.5" x 2.5" x 1.8" (11.4 x 6.4 x 4.6cm) (H x W x D)
  • Shipping Weight: 6 oz. (170.1g)

Quick Mount:
A quarter-turn of a screwdriver in the back housing’s mounting disk and the unit embeds itself in any corner in under a minute, with innovative self-projecting, fast anchoring wall pins

Quick Wire:
Snap-Down terminal strips for connecting wires with no screws to fasten. Just insert stripped wires in each and snap down (speaker-jack style).

IQ Profiler
IQ Profiler

Advanced PIR with IQ Look

IQ VISION

With its advanced ASIC PIR technology and so many innovative features, the IQ Vision is sure to be a reliable component in any security system, large or small. Among its innovative features is a range of 40’ x 40’, and 30lb. pet immunity, which is great for false alarm protection for small pets, like cats and dogs. The IQ Vision also has a sealed sensor chamber to prevent insects, and dust from interfering with the sensor. With an attractive two-tone bi-optic case, the IQ Vision adds designer appeal to match any location. The IQ Vision will greatly reduce false alarms, and is an asset to any alarm system.

  • 40' x 40' (12.2m x 12.2m) range
  • 30lb pet immunity
  • Advanced ASIC PIR technology
  • Attractive two-tone bi-optic case
  • Excellent EMI-/RMI-/lightning protection with resilient SMD circuitry
  • Sealed sensor chamber prevents insect/draft interference
  • Features look-down/creep zone
  • SSP (Signal Selective Processing) for the easiest and most stable of installations
  • Auto Temp compensation
  • Advanced, EZ-Aim fresnel lenses for optimum detection performance
  • Conventional wall or corner mounting
  • Tamper supervised
  • Form A relay (Form "C" option)
  • Operating Temperature: 14°F to 122°F (-10°C to +50°C)
  • Traditional Mounting: Wall or corner (hardware supplied)
  • Alarm Output: Normally closed from A relay
  • Contact Ratings: 100ma, 24VDC with internal 10 Ohm current-limiting resistor
  • Power Supply Requirements: Unit is intended to operate from a power source that provides a 4 hr battery backup in the event of a power failure
  • Filtered DC: 10.6 to 16 VDC with a battery back-up from control panel
  • Current Drain: 16 mA @ 12 VDC nominal
  • Dimensions: 4.5" x 2.5" x 1.8" (11.4 x 6.4 x 4.6cm) (H x W x D)
  • Shipping Weight: 6 oz. (170.1g)
